OCTA CORE TV BOX
* Octa Core Processor
* Internal 2.5″SATA HDD
* Voice Search
* 4K HDR 10
* 3GB DDR4 RAM +16GB Memory

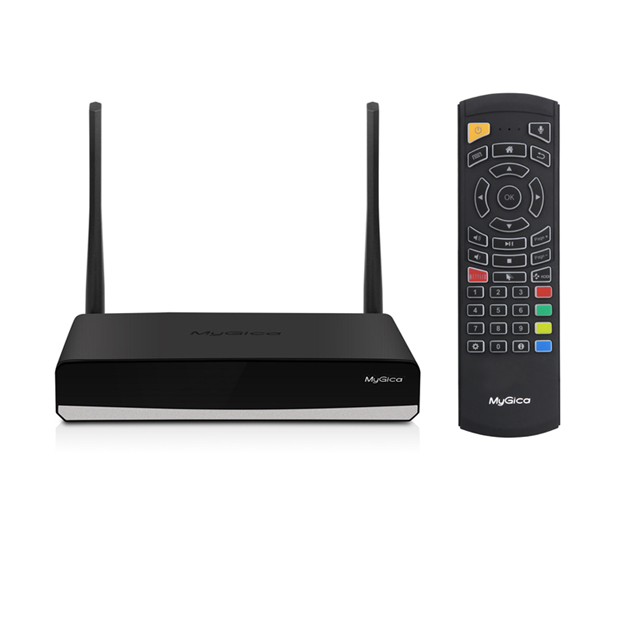

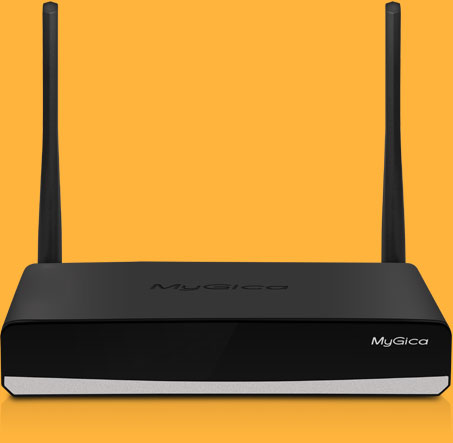

Octa Core Android 7.1 TV Box
MyGica ATV1960 is a powerful Octa Core Android 7.1 TV Box with 3GB DDR4 RAM, 16GB of memory and a built-in hard drive bay, supports latest Kodi 17.3, voice search, 4K HDR, all major video formats and more.
HDR (High Dynamic Range) Video
ATV1960 support HDR10 technologies.
With HDR technology you can watch HDR videos in vivid contrast, color and clarity.
*Requires a HDR TV and HDR-enabled video content.

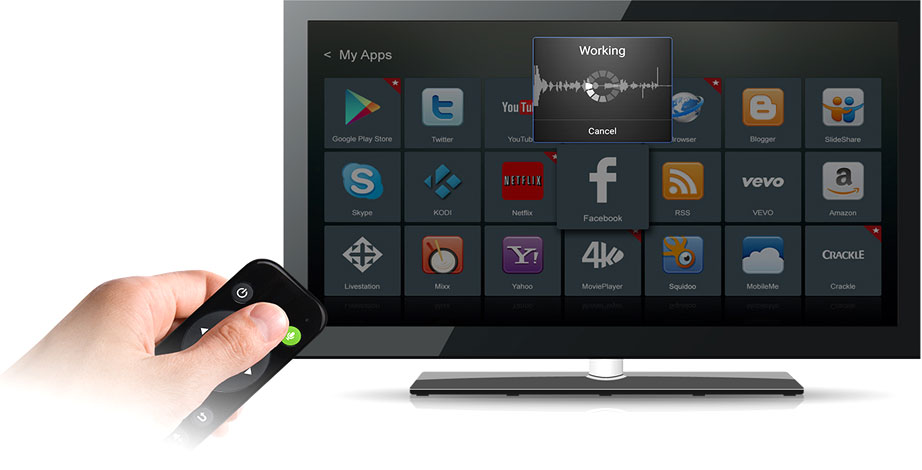

Say it to search it
Speak into the voice remote control and ATV1960 TV Box searches for what you want. Ask for the best in
stream your favorite movies, search across apps, and get information, news, sports scores, weather, and more—instantly.
Internal 2.5″ SATA HDD
Support 2.5″ SATA HDD, just simply insert your 2.5″SATA HDD to the connector and you can use it as a storage device.
You can playback your local video, music or use it to store your recorded TV shows.

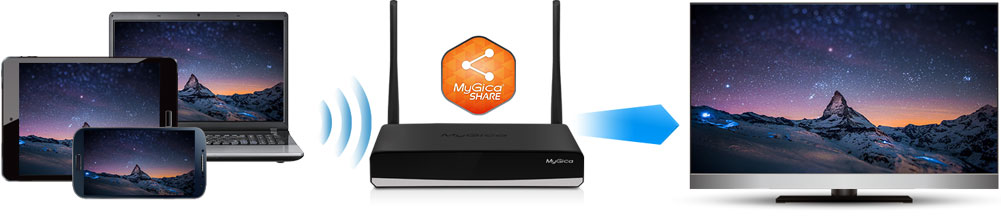

MyGica Share is a multi-screen interactive applicaiton.
MyGica Share features Media File Streaming, Document File Streaming, AirPlay
Mirroring and Miracast functions. You can easily stream your media content from your mobile devices and PC to TV.
Connectivity: WLAN 802.11AC +BT
3x Faster Wi-Fi speed than Wireless-N Wi-Fi
150% wider/Ultra-wide coverage for large homes and multi-floor location via MyGica ATV1960
Kodi, formally known as XMBC, is a media player platform that allows users to play and view most videos,music, such as podcasts from the Internet, home network and all common digital media files from local andnetwork storage media. The ATV1960 comes pre-installed customized and optimized Kodi, with hardware decoding up to 4K2K Ultra HD support.
4K2K/ULTRA HD @60fps
4K2K Ultra HD video playback / real time decoding, with HDMI 2.0 frame rate can go up to 60fps. Enjoy the incredible picture crispness and dramatic detail 4K2K Ultra HD and 1080p resolution.
H.265 hardware decoding, saving 50% bandwidth
H.265/HEVC is a successor to H.264/AVC. Compare to H.264, H.265 data compression ratio is double at the same level of video quality.
It can alternatively be used to provide substantially improved video quality at the same bit rate.
MyGica Andoid TV Platforms / Solution benefit from MyGica’s worldwide secure online update service, to always provide the latest, safest and greatest Firmware and Application that are available.
- AML S912-B, Octa Core ARM Cortex A53 CPU, MaliT820MP3 GPU
- CPU Frequency
- Up to 2.0GHz
- 3GB DDR4
- 16GB EMMC
- Android 7.1

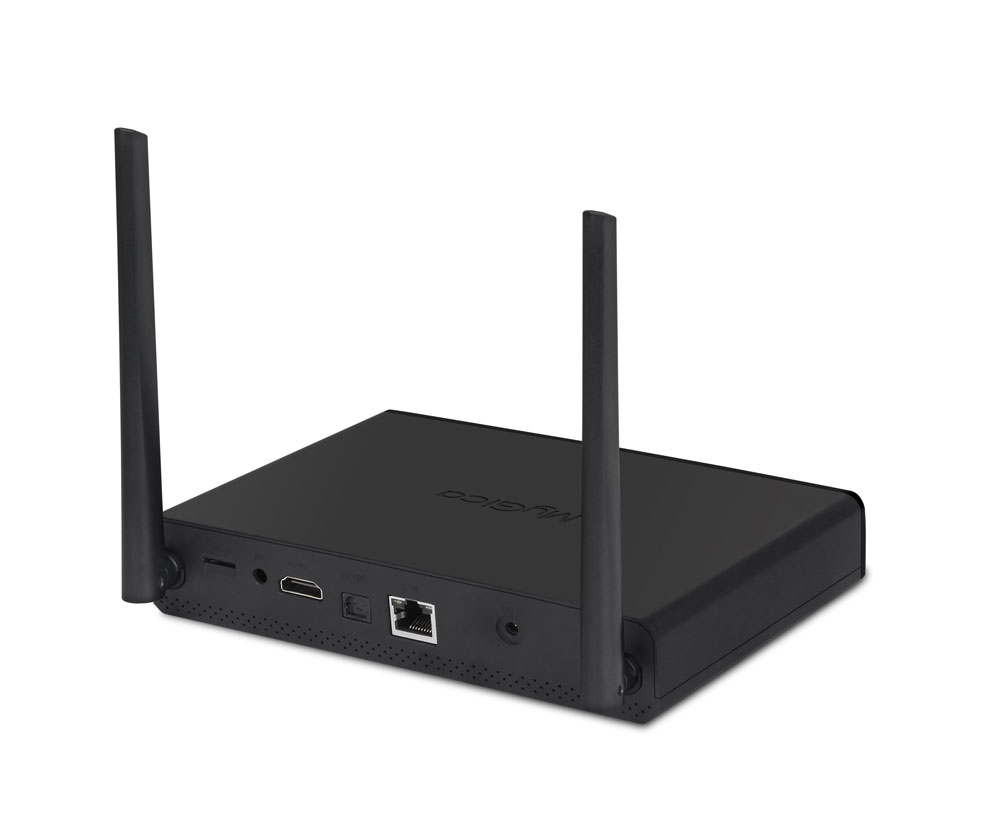

Interface Defintion and parameter
- HDMI v2.0a, CVBS, SPDIF Optical
- 2x USB 2.0
- SD card
- TF Card up to 128GB
- 802.11ac Dual band WiFi; RJ45 Gigabit Ethernet; Bluetooth 4.1
- Remote control
- MyGica KR303 2.4G with AirMouse, keyboard and microphone
- 5V/3A DC
- 4K(60fps), 2K, 1080p(60fps), 1080i, 720p, 720i, 576p, 576i, 486p, 486i
- Video Codec
- VP9-10, MVC, AVS, H.265, Mpeg1/2/4, H.264, VC-1, WMV, AVI, MKV, MOV
- Audio Codec
- MP3, AAC, WMA, RM, FLAC, Ogg, Dolby Digital, Dolby Digital Plus
- Software update
- Internal SATA HDD, TF card, USB storage support
- Product Size
- 176 x 114 x 33 mm
Widevine L1 /L3
