EPC1000P

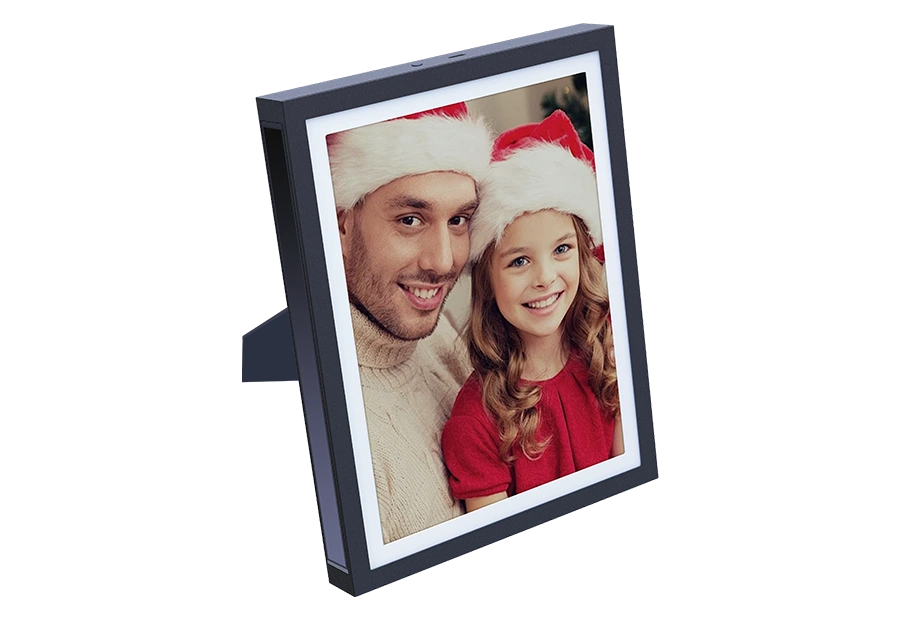

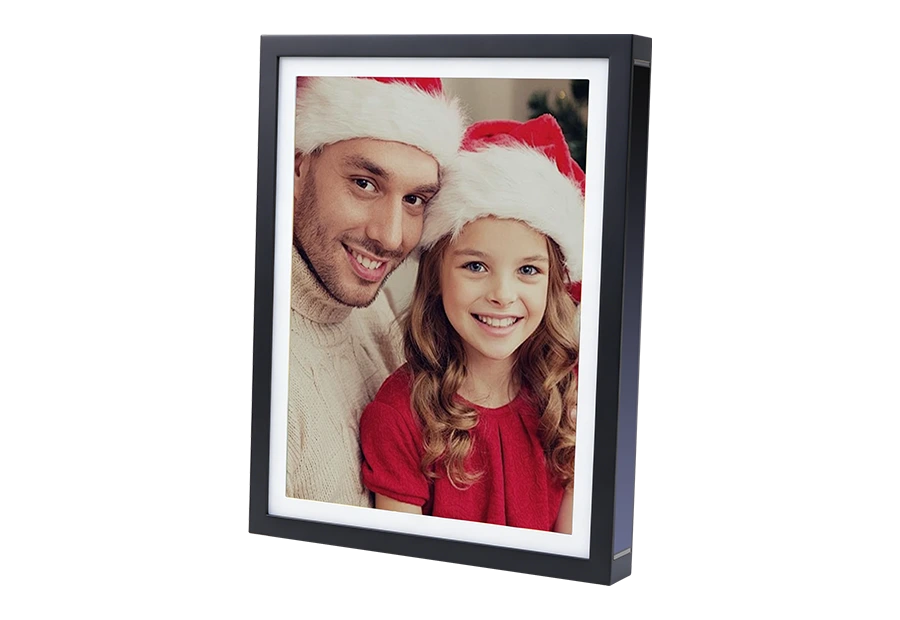

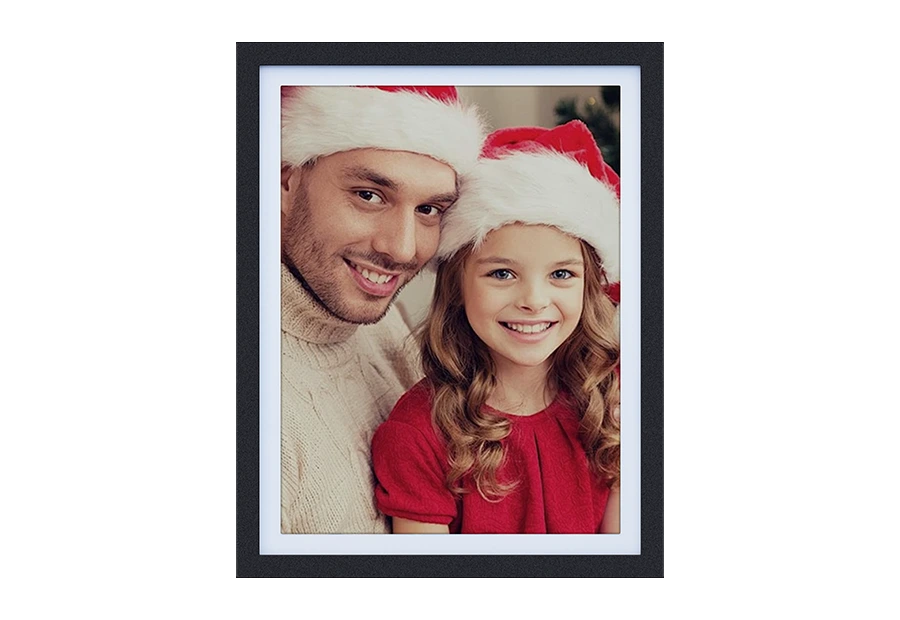

10″ Micro-Light Color E Ink Picture Frame

MyGica EPC1000 Micro-Light Edition features a 10-inch E Ink Spectra™ 6 display that delivers a warm, paper-like, eye-friendly visual experience with no blue light. Powered by micro-light energy harvesting, it draws energy from ambient light for low-maintenance operation, while Wi-Fi and app control enable easy photo updates and slideshow playback.
  • 10-inch E Ink Spectra™ 6 display, 1600 × 1200, 4:3
  • Micro-light powered design for continuous ambient light charging
  • Wi-Fi mobile app image upload & control
  • Paper-like display with zero glare and no blue light
  • Automatic slideshow with timed refresh intervals
  • Physical buttons with intuitive local control

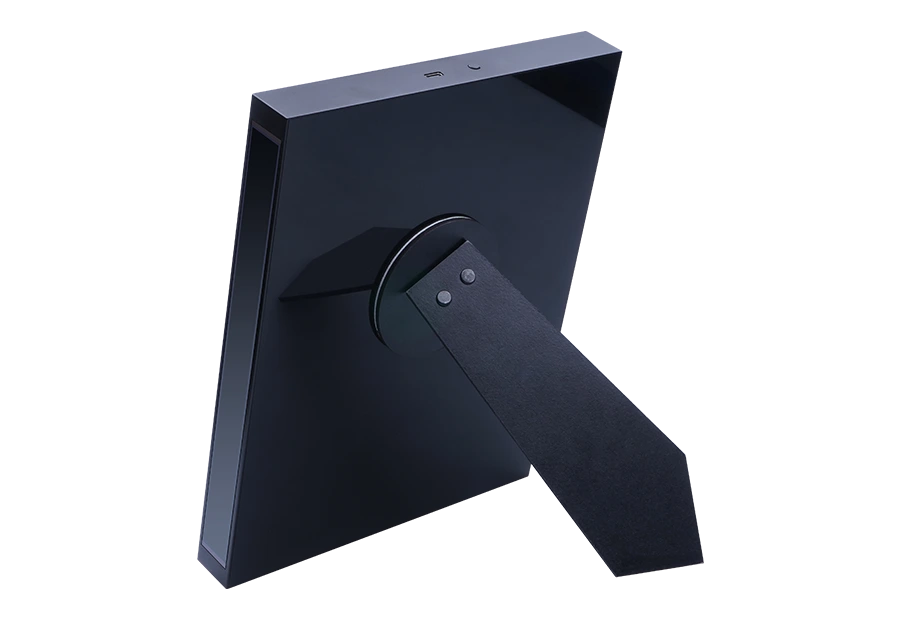

  • Flexible wall or desktop placement with portrait or landscape orientation
Model EPC1000M


Dispaly module  Specification which can be used for demo

Screen Size: 10 inchesResolution: 1600×1200

Screen Type: E Ink Spectra 6 E-paper Display

Screen Aspect Ratio: 4:3

Effective Display Area: 203.2×152.4 mm

Supported Display Colors: 6-color display (black/white/red/yellow/blue/green)

PPI: 200





Demo App



Operating System: Android 6.0 and aboveImage Upload Time: 6 seconds

Image Refresh Time: 29 seconds

Image Update Tool: Mobile App (for smartphone)

Languages: Chinese and English

Transmission Method: WiFi





Controller Board Specification

MCU: BL602Memory: 276 KB RAM

Storage: 128 KB, Flash: 4 MB

WiFi: 2.4G

Bluetooth: 5.0



Power Consumption

Battery Capacity: 600mAPower Supply Method: Micro-light Power Supply

Can run maps: 160 times

Working Temperature Operating Temperature: 0℃ ~ 50℃Storage Temperature: -25℃ ~ 60℃

Frequently Asked
Questions

Q: How does E Ink Spectra™ 6 improve the display quality?

A: E Ink Spectra™ 6 enhances display quality by delivering richer color reproduction and a more natural, paper-like visual experience compared to earlier ePaper generations. Its reflective display structure uses ambient light instead of a backlight, resulting in reduced glare, improved viewing comfort, and a printed-art aesthetic that is well suited for photos, artwork, and decorative content.

Q: What are the benefits of the Micro-light Power Supply system?

A: The Micro-light Power Supply system helps improve energy efficiency by utilizing ambient light as a supplementary energy source. This reduces reliance on frequent charging and supports longer-term, low-maintenance operation, making the picture frame more suitable for semi-permanent or always-on display scenarios in home, office, and hospitality environments.

Q: Can images be updated remotely or easily?

A: Yes. Images can be updated remotely through a dedicated mobile application, allowing users to upload, replace, and manage content without physically accessing the device. This enables efficient content management for both single and multiple picture frames, making it suitable for personal use as well as commercial deployments such as retail, hospitality, and office environments.

Q: Why choose an E Ink picture frame instead of a traditional LCD picture frame?

A: Unlike LCD picture frames that rely on continuous backlighting, E Ink picture frames use reflective display technology to present images with a paper-like appearance. This results in no screen glare, significantly lower power consumption, and a more natural visual style that resembles printed photos or artwork, making it ideal for long-term decorative display.

Q: What are the typical applications of an E Ink picture frame?

A: E Ink picture frames are used in home decor, office environments, hospitality spaces, retail displays, and personalized gifting. They are well suited for displaying digital artwork, photography, and other static visual content that benefits from a paper-like appearance, glare-free viewing, and low power consumption instead of video playback.
