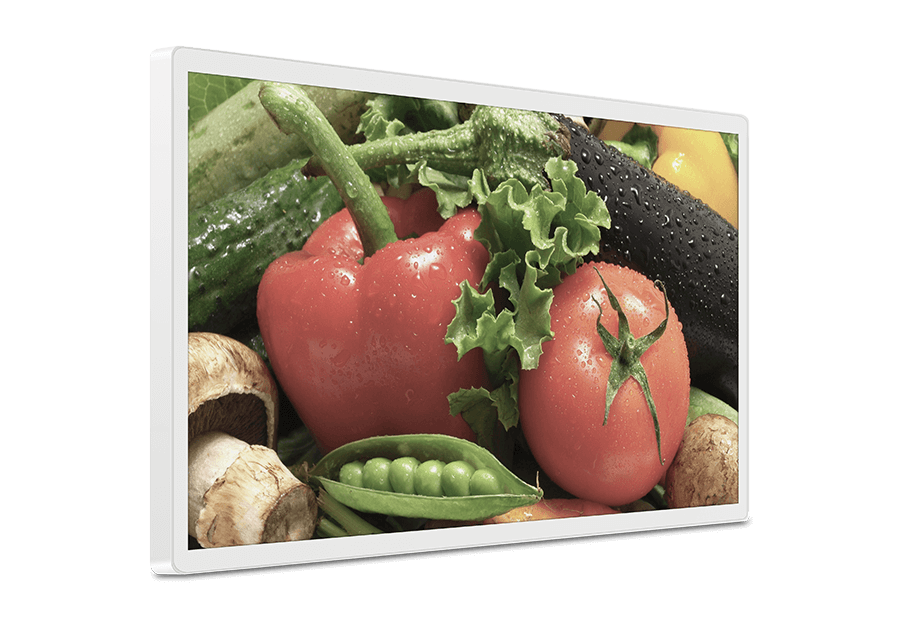

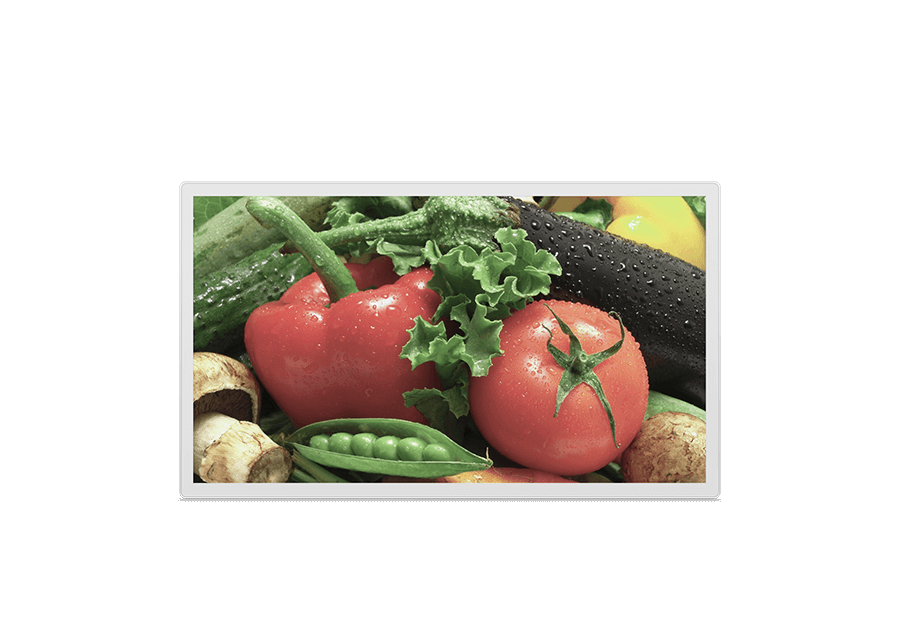

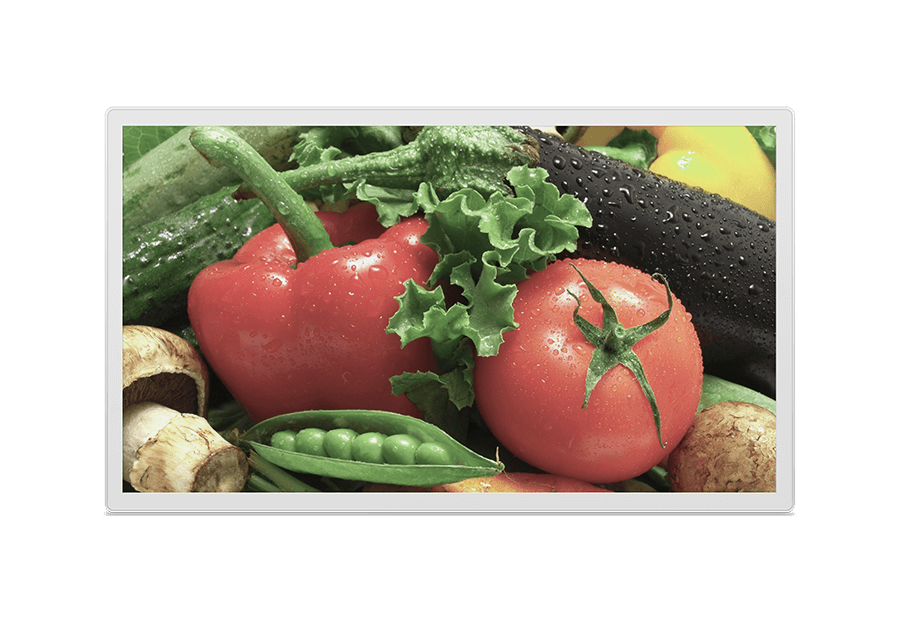

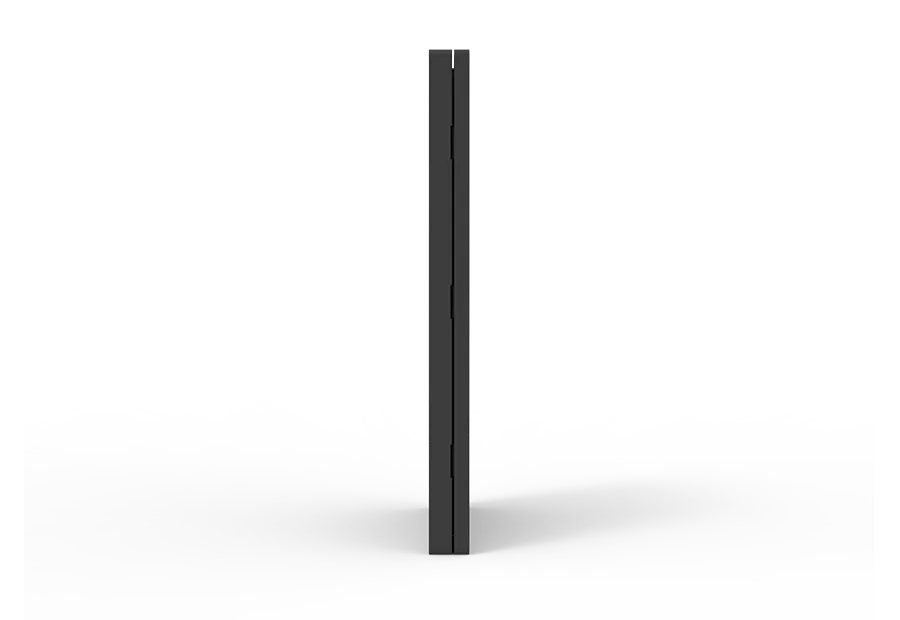

MyGica EPC3200C is a 31.5″ color Cholesteric reflective display that delivers paper-like visual quality with ultra-low power consumption and operates in -20°C to 60°C environments, making it ideal for energy-efficient signage.
| Casing Material | Galvanized iron |
| Available Colors | White / Black |
| Interfaces | USB 2.0 / Wi-Fi |
| Power Supply | 12V 5000mAh lithium battery |
| Power Consumption | 0 W (static state) |
| Operating Time | 6–12 months (depending on refresh frequency) |
| Panel Size & Type | 31.5″ Color E-Paper Screen |
| Resolution & Aspect Ratio | 1920 × 1080, 9:16 |
| Viewing Area & Angle | 363.38 × 697.68 mm, 178° H / 178° V |
| Refresh Time | ~1.0 s |
| MCU & Storage | Xtensa 32-bit Dual Core MCU, 120MB eMMC |
| Network Control | Account and device management, terminal-server heartbeat, image transfer and carousel, sleep/wake-up in ultra-low power mode |
| Temperature and humidity | Operating: -20°C to 60°C, Storage: -25°C to 70°C, Humidity: 10–90% |
| Dimensions & Weight | 728 × 423 × 20 mm, Net: 5 kg |
A: A cholesteric LCD display is a reflective bistable display technology that retains images without continuous power and provides high visibility under ambient and direct sunlight conditions.
A: It is designed for large-format information display applications such as transportation signage, industrial monitoring panels, outdoor information boards, and public infrastructure systems.
A: Unlike traditional LCDs that rely on backlighting, cholesteric LCD is a reflective display technology that maintains images without continuous power consumption.
A: Compared to color ePaper displays optimized for indoor readability and visual richness, cholesteric LCD prioritizes strong performance under high ambient light and outdoor visibility.
A: It supports a wide operating temperature range of -20°C to 60°C, water-resistant design, and solar or battery-powered wireless deployment. Its reflective display ensures clear visibility even under direct sunlight without backlighting.
