EPC1330B

13.3” IP54 Outdoor E-Paper Display

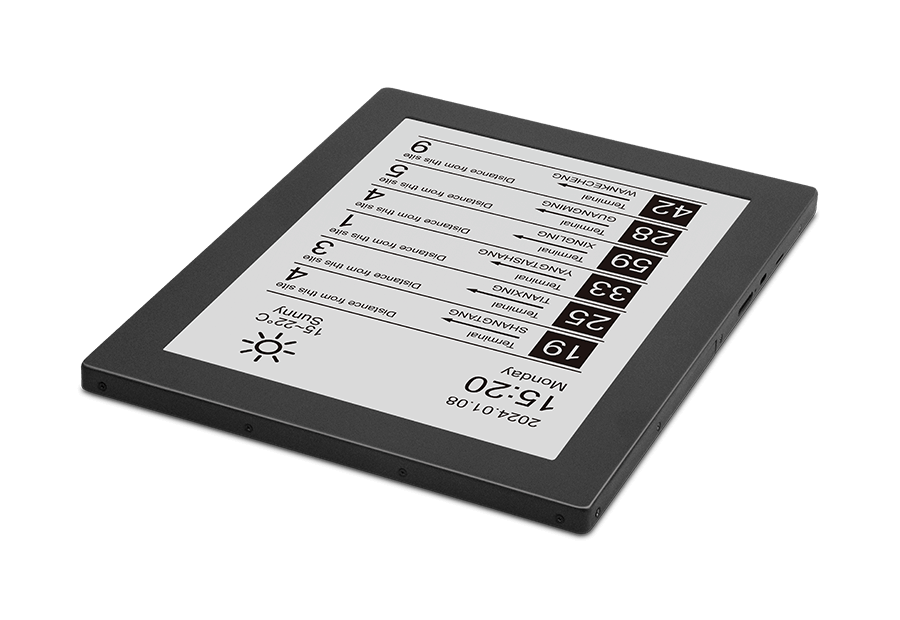

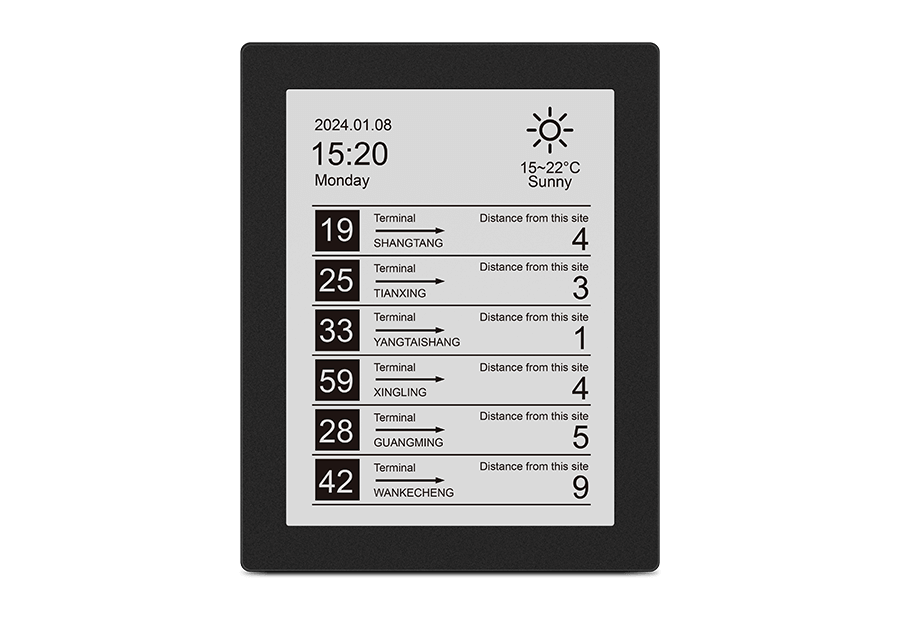

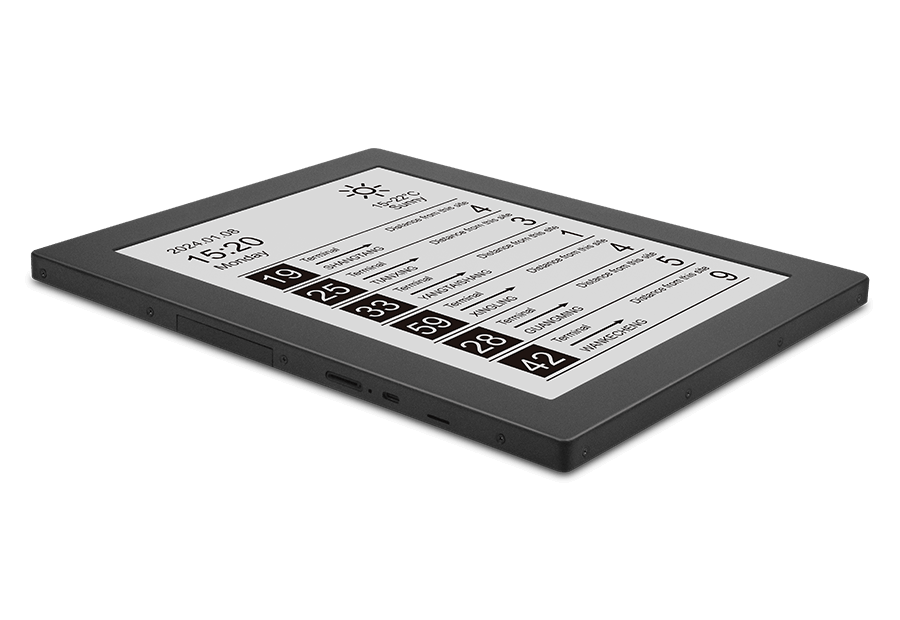

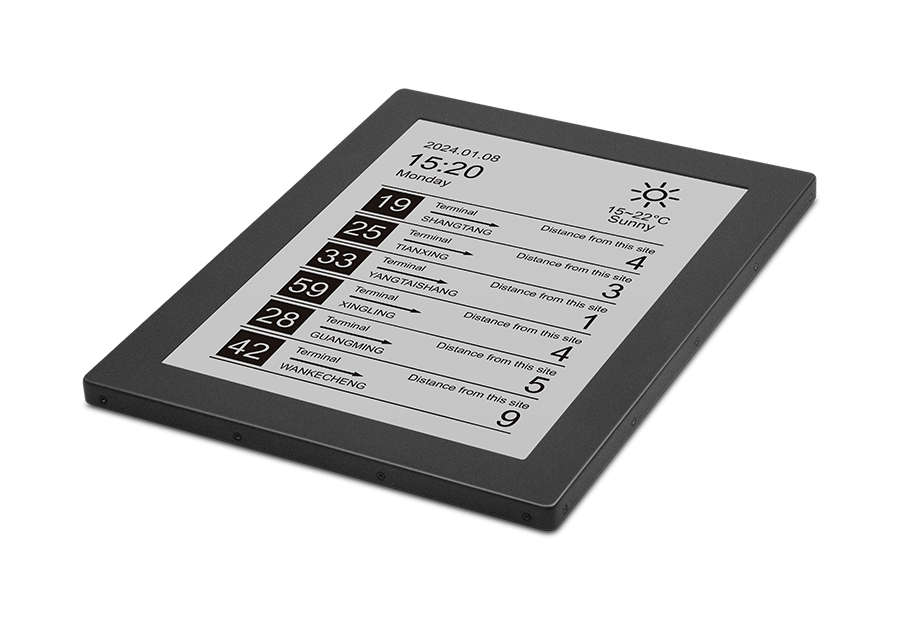

MyGica EPC1330 is a 13.3″ outdoor E-Paper display solution featuring a Carta E-Ink panel with 1200×1600 resolution. It delivers paper-like readability with no glare, even under direct sunlight. Powered by a quad-core Cortex-A55 processor and Android OS, it supports wireless connectivity and flexible content deployment. With a full-metal IP54-rated housing and built-in battery, it is ideal for public transport and smart signage applications.

  • 13.3″ Carta E-Ink display with paper-like, glare-free, flicker-free viewing
  • Built-in CMS system for remote management
  • Ultra-low power consumption for always-on signage
  • USB-C with OTG support, wiring-free installation
  • Built-in lithium battery, optional solar panel support
  • Full-metal IP54-rated housing with -15℃~50℃ wide temperature operation
Screen Size: 13.3″ E-ink screen
Resolution: 1200*1600
E-INK Technology Carta
SoC Quad-core Cortex-A55
OS Android 8.1
Storage 2GB+32GB
Network 2.4G/5G Wi-Fi,Bluetooth4.2,4G LTE(Optional)
Expansion Interface USB-C (support OTG)
Temperature -15℃ to 50℃

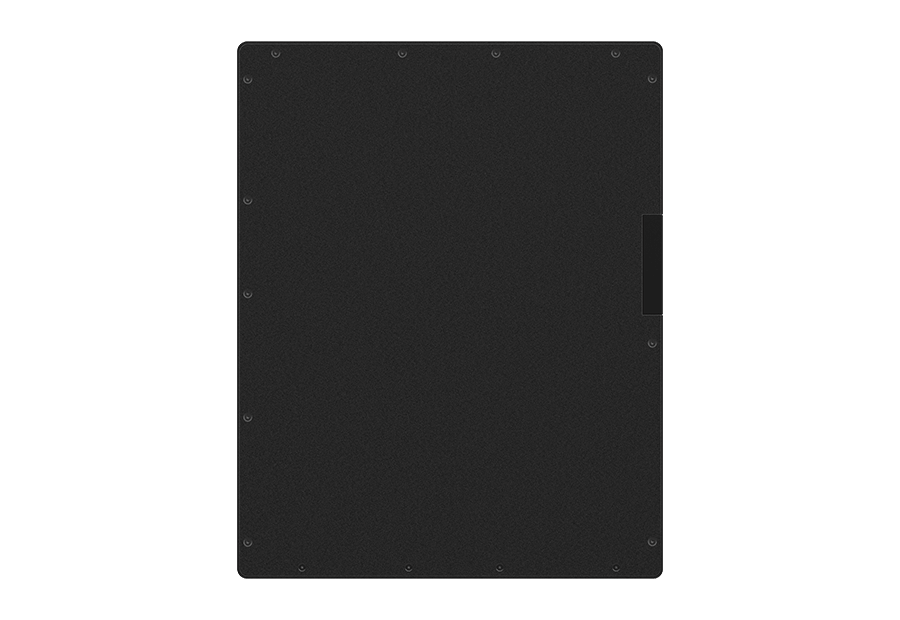

Build Full-metal housing, IP54 rated
Battery & Range 3450mAh lithium-ion battery
Dimesions 255*320*40mm
Weight:1.5Kg
Certification CE, FCC

EPC1330B Specification

Frequently Asked
Questions

Q: What are the advantages of a 13.3-inch e-paper display?

A: The compact 13.3-inch format is ideal for space-constrained transportation installations, offering low power consumption and excellent readability under direct sunlight.

Q: Can the display be deployed in locations without power cabling?

A: Yes. The system supports low-power operation and can be powered by solar panels or battery systems, enabling deployment in locations without wired infrastructure.

Q: Does the display support remote content management?

A: Yes. Content can be remotely updated and scheduled through a centralized platform, enabling efficient management across distributed transportation nodes.

Q: What makes this display suitable for transportation environments?

A: Its low power consumption, flexible deployment options, and strong environmental adaptability make it suitable for outdoor transit infrastructure.
